BluEarth 110L

YOKOHAMA’s advanced steer and all-position tyre with innovative BluEarth concept and SPIRALOOP technology

Main Product Image

ALL ADVANTAGES AT A GLANCE

Applications

  • Steer Axle
  • All-Position
  • For highway operations

Benefits

  • Zero degree joint less circumferential direction belt controls the shoulder area casing growth and increases anti irregular wear performance and shoulder area durability.
  • Contact Pressure Equaliser Sipe optimises rib contact pressure for anti uneven wear and improves wet handling and braking.
  • Wavy Grooves reduce stone damage and improve uneven wear performance.
  • SC-SIPE (Stress-Wear Control Sipe) design improves abnormal wear on rib edges.

  • Truck steer
  • Truck all positions
  • BluEarth image
  • Spiraloop image
  • SC Sipe image
  • M+S image
EU LABEL GRADE
Fuel Efficiency C
Wet Grip B - C
External Noise Class A - B
External Noise Value (dB) 67 - 73

Back to search

BluEarth 110L

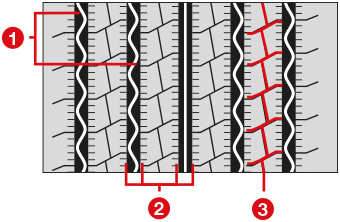

Pattern Design


1) Wavy Grooves reduce stone damage and improve uneven wear performance.

2) SC-Sipe (Stress-Wear Control Sipe) design improves abnormal wear on rib edges.

3) Contact Pressure Equaliser Sipe optimises rib contact pressure for anti-uneven wear and improves wet handling and braking.

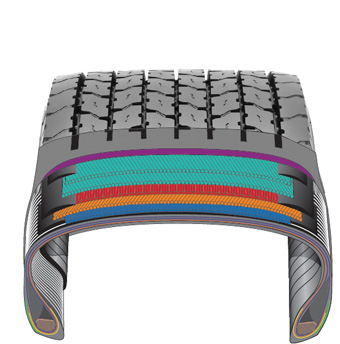

Spiraloop

110L_Belt Structure.jpg

The innovative “SPIRALOOP” Belt Structure has excellent casing durability, minimises casing growth and improves uneven wear performance. It contains an advanced, joint-less, zero degree circumferential belt, added in between the conventional 2nd and 3rd belt.



Foot Print 1/2


Conventional 4 Belt Construction before and after durability test



Foot Print 2/2


Spiraloop Construction before and after durability test

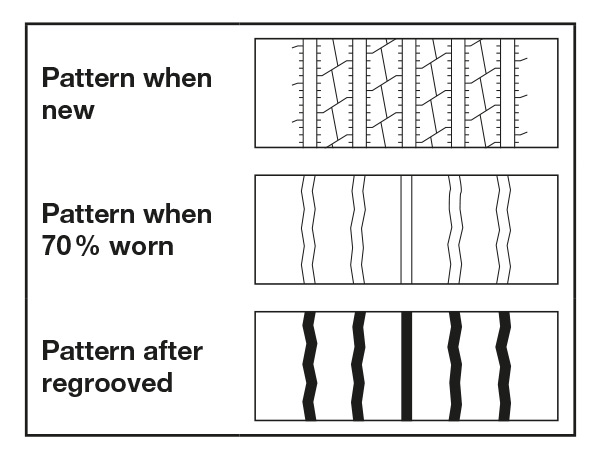

Regrooving Procedure


Tyre Sizes: 355/50R22.5 & 315/60R22.5

2.5mm depth / 7.0mm width

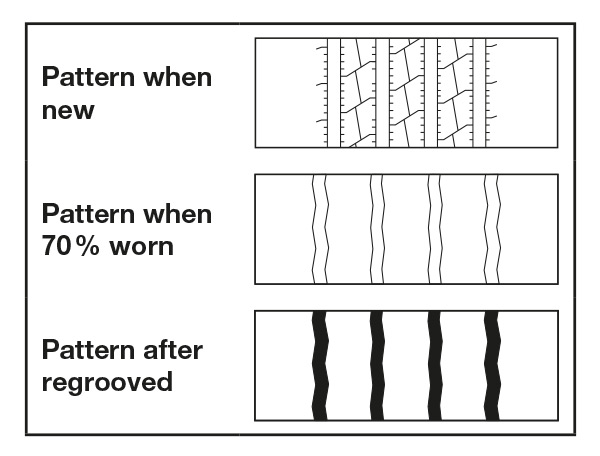

Regrooving Procedure


Tyre Size: 315/80R22.5

2.5mm depth / 7.0mm width

  • Truck steer
  • Truck all positions
  • BluEarth image
  • Spiraloop image
  • SC Sipe image
  • M+S image
EU LABEL GRADE
Fuel Efficiency C
Wet Grip B - C
External Noise Class A - B
External Noise Value (dB) 67 - 73

Back to search

BluEarth 110L

InchSeriesSizeArt.NoteOE InfoEAN/JANfuel iconwet iconnoise iconsnow iconice iconEU LABEL GRADE
22.560 315/60R22.5 154/148L B43464968814868024 C B 72dB/B Link
22.580 315/80R22.5 156/150L B50274968814985653 C B 67dB/A Link
22.550 355/50R22.5 156L B43454968814868017 C C 73dB/B Link
